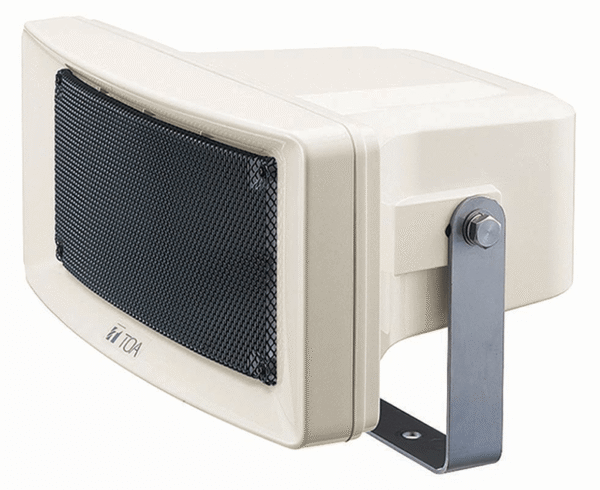

Toa CS-304 30W Horn Speaker

Price: 1 ৳

Regular Price: 1 ৳

Status: In Stock

Product Code: CS-304

Brand: TOA

Key Features :

The CS-304 outdoor speaker features stainless steel hardware for all-weather durability.

It is designed to offer the high intelligibility of weather-resistant horns combined with the high sound quality of dynamic speakers.

The CS-304 employs the rotary switch that facilitates impedance changes.

It also employs a constant directivity horn for clear sound output over its horizontal range of 90゜operation.

- +

Description

High-Power 30W Output with 90° Predictable Coverage

The Toa CS-304 30W Horn Speaker is a high-output outdoor horn speaker designed for large-area public address where both power and controlled sound dispersion are critical. With a substantial 30-watt power handling on 70V/100V line systems and an exceptionally high 98 dB sensitivity, it delivers loud, far-reaching sound with excellent amplifier efficiency. Its defining feature is the constant directivity horn, which provides a consistent 90° horizontal coverage pattern (±45°), ensuring uniform sound projection and clear intelligibility across wide, fan-shaped areas.

Professional IP65 Protection & Durable Build

Engineered for permanent, hassle-free outdoor installation, the Toa CS-304 30W Horn Speaker boasts a robust IP65 rating, certifying it as completely dust-tight and protected against low-pressure water jets from any direction. This guarantees reliable performance through heavy rain, dust, and humidity. The enclosure is constructed from UV-resistant ABS resin, and all critical hardware—including the bracket and screws—are made from corrosion-resistant stainless steel, ensuring longevity in Bangladesh’s demanding climate.

Primary Applications

Sports Stadiums & Large Grandstands: For clear announcements to broad seating sections.
Public Parks & Amphitheaters: To cover wide, open gathering spaces evenly.
Industrial Plants & Shipping Yards: For safety announcements across large work areas.
University Fields & Campus Commons: Directional sound for outdoor events and alerts.
Transportation Hubs: Covering large open areas in bus or train terminals.

Toa CS-304 30W Horn Speaker Pricing & Availability in Bangladesh

Price: Contact for Quote (High-power professional outdoor speaker)
Availability: Supplied through professional audio and large-scale PA system integrators

Specification

Complete Technical Specifications

Specification	Details
Model	Toa CS-304 30W Horn Speaker
Rated Input	30 W (70V / 100V Line)
Sensitivity	98 dB (1W, 1m)
Frequency Response	120 Hz – 15,000 Hz
Directivity	Constant 90° Horn (±45° Horizontal)
Speaker	12 cm Cone-type
Protection Rating	IP65 (Dust-tight & Water Jet Protected)
Operating Temperature	-20°C to +55°C
Construction	ABS Resin Horn, Stainless Steel Bracket & Screws, Aluminum Net
Dimensions & Weight	366 (W) x 230 (H) x 272 (D) mm / 3.1 kg
Cable	Integrated 2-core cabtyre cord (6 mm)
