TOA WS-420 Single Channel Wireless Set

Price: 1 ৳

Regular Price: 1 ৳

Status: In Stock

Product Code: WS-420

Brand: TOA

Key Features :

The powerful WS-420 is a single channel wireless microphone system set that combines exceptional performance with cost efficiency. The simplest plug and play system is designed to launch you into the world of wireless. The rugged and compact frame contains a reliable multifunctioning system that is optimised for use with a range of microphones from handheld to lapels, headsets, and even musical instruments.

- +

01601230340

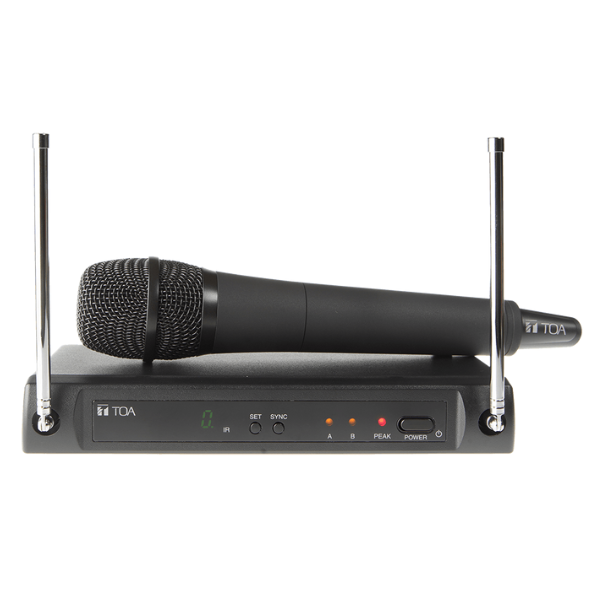

TOA WS-420 Single Channel Wireless Set

The powerful TOA WS-420 is a single channel wireless microphone system set that combines exceptional performance with cost efficiency. The simplest plug and play system is designed to launch you into the world of wireless. The rugged and compact frame contains a reliable multifunctioning system that is optimised for use with a range of microphones from handheld to lapels, headsets, and even musical instruments.

WS-420 একটি সিংগেল চ্যানেলের পাওয়ারফুল ওয়্যারলেস মাইক্রোফোন সিস্টেম সেট যা স্বল্প খরচে অসাধারণ পারফরম্যান্স দেয়। এই সিম্পল প্লাগ & প্লে টাইপ সিস্টেম ডিজাইন করা হয়েছে আপনাকে ওয়্যারলেস মাইক্রোফোনের দুনিয়ায় প্রবেশ করতে দেওয়ার জন্য। কম্প্যাক্ট ফ্রেমটি বিশ্বস্ত মাল্টিফাংশনাল সিস্টেমে ব্যবহার করা যায় যেমন হ্যান্ডহেল্ড মাইক্রোফোন, ল্যাপেলস,হেডসেট এমনকি মিউজিকাল ইন্সট্রুমেন্টেও।

Toa WS-420 Specification:

Product Composition	Handheld wireless microphone x 1 Receiver x 1
Frequency Range	694 – 806 MHz (*1), UHF
Channel Selectable	4 channels
Tunable Frequencies	25 kHz Steps
Pilot Tone	32.768 kHz
Total Harmonic Distortion	<1% @ 1kHz
Function	IR sync, Channel scan, Battery indicator
Accessory	AC adapter x 1 Microphone holder x 1

Product Composition

Handheld wireless microphone x 1
Receiver x 1

Frequency Range

694 – 806 MHz (*1), UHF

Channel Selectable

4 channels

Tunable Frequencies

25 kHz Steps

Pilot Tone

32.768 kHz

Total Harmonic Distortion

<1% @ 1kHz

Function

IR sync, Channel scan, Battery indicator

Accessory

AC adapter x 1
Microphone holder x 1

Wireless Microphone

Microphone Element	Dynamic with cardioid pattern
RF Carrier Power	10 mW
Audio Frequency Response	80 – 15,000 Hz
Audio Input Level	140 dB SPL (Maximum)
Modulation System	PLL synthesizer
Battery	1 AA size alkaline battery, 1.5V
Battery Life	Approx. 10 hours
Indicator	Battery Status LED, 7 Segments LED
Finish	Resin, coating
Dimensions	Approx. 250 x 50 mm
Weight	Approx. 245 g (with battery)

Microphone Element

Dynamic with cardioid pattern

RF Carrier Power

10 mW

Audio Frequency Response

80 – 15,000 Hz

Audio Input Level

140 dB SPL (Maximum)

Modulation System

PLL synthesizer

Battery

1 AA size alkaline battery, 1.5V

Battery Life

Approx. 10 hours

Indicator

Battery Status LED, 7 Segments LED

Finish

Resin, coating

Dimensions

Approx. 250 x 50 mm

Weight

Approx. 245 g (with battery)

Wireless Receiver

Diversity Reception	AC mains (supplied AC-DC adapter must be used)
Sensitivity	10uV at 45dBA S/N
Squelch (SQ)	Tone SQ, Carrier SQ and Noise SQ
Audio Frequency Response	50 – 15,000Hz
Audio Output Level (Maximum)	Balanced (XLR socket): -20dBu Unbalanced (1/4″ jack socket): 10dBu
Power Supply	11-18 VDC 300mA
Dimensions	215 (W) × 39 (H) × 102 (D) mm (excluding antenna and BNC)
Weight	480 g

Diversity Reception

AC mains (supplied AC-DC adapter must be used)

Sensitivity

10uV at 45dBA S/N

Squelch (SQ)

Tone SQ, Carrier SQ and Noise SQ

Audio Frequency Response

50 – 15,000Hz

Audio Output Level (Maximum)

Balanced (XLR socket): -20dBu
Unbalanced (1/4″ jack socket): 10dBu

Power Supply

11-18 VDC 300mA
