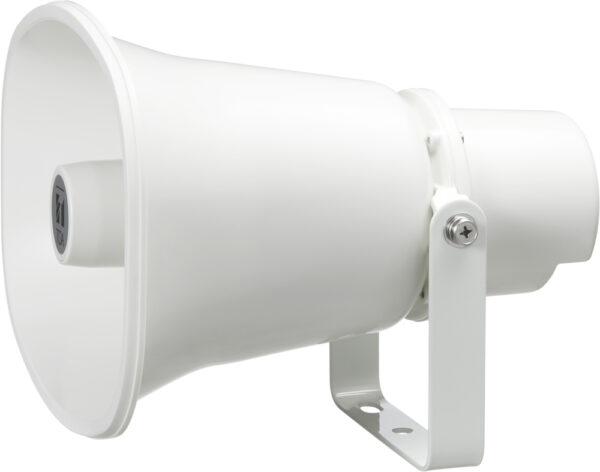

The TOA SC-632 Paging Horn Speaker is a unique, multi-functional audio device that combines a powerful 30-watt output horn with a built-in microphone. This allows it to serve dual purposes: broadcasting loud, clear announcements at 113 dB and functioning as a talk-back or listening point in an intercom system. Its specialized frequency response (250 Hz – 10,000 Hz) is optimized for maximum voice intelligibility, making it ideal for two-way communication at security checkpoints, factory floor stations, loading docks, and perimeter gates where both output and input are required.
Engineered for flexible deployment, the TOA SC-632 Paging Horn supports 30W fixed installations and 15W mobile/vehicle mounting, making it suitable for both permanent sites and security patrols. It carries a robust IP65 rating for complete protection against dust and water jets, ensuring reliability in harsh outdoor and industrial environments. The all-white finish with corrosion-resistant hardware allows it to blend discreetly into architectural settings while maintaining durability.
| Specification | Details |
|---|---|
| Model | TOA SC-632 Paging Horn |
| Rated Input | 30 W (Fixed) / 15 W (Mobile) |
| Impedance | 8 Ω |
| Output Sound Pressure Level | 113 dB (1W, 1m) |
| Microphone Sensitivity | 74 dB (Built-in, for talk-back function) |
| Frequency Response | 250 Hz – 10,000 Hz |
| Protection Rating | IP65 (Dust-tight & Water Jet Protected) |
| Operating Temperature | -20°C to +55°C |
| Key Feature | Integrated Microphone for two-way communication |
| Construction | Aluminum & ABS/ HIPS Resin, White Finish |
| Cable | Integrated 450mm White PVC Cable |
| Dimensions & Weight | 292 (W) x 234 (H) x 280 (D) mm / 1.8 kg |
| Optional Mounting | YS-151S Swivel Bracket |
