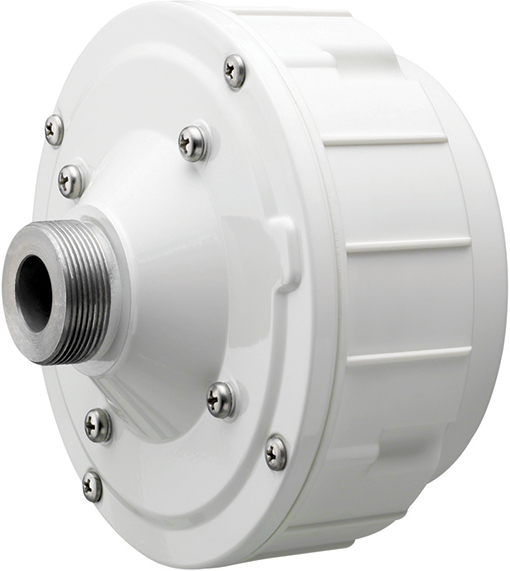

TOA TU-632 Driver Unit with Horn Speaker
The TU-632 is a highly intelligible driver unit suited to public address announcement applications.
The driver unit is used in combination with a suitable horn (optional).
Powder-coated finish and stainless steel screws ensure the unit’s weatherproof capability.
The TOA TU-632 Driver Unit is a professional compression driver unit, the core acoustic engine designed to power large horn speakers like the TH-652. With a 30-watt power handling and 16-ohm impedance, it converts amplified electrical signals into high-intensity acoustic energy with an efficiency of 110 dB SPL (1W, 1m). This driver is the critical component in creating extreme long-throw sound systems for applications where volume, clarity, and reliability are paramount.
Component for Custom High-Output Sound Systems
This driver is not a standalone speaker. It is a system component that must be physically coupled to a compatible horn (like the TOA TU-632 Driver Unit) to form a complete loudspeaker. Its standard 1-3/8″ 18 thread coupling allows for secure attachment to industry-standard horns. When properly mounted to a horn, the assembly achieves an IP65 environmental rating. The unit includes an integrated 450mm white cable for connection.
Price: Contact for Quote (Professional audio driver component)
Availability: Supplied through professional sound reinforcement and large-scale PA system integrators
For Purchase & Inquiry:
Recommended Supplier Contact:
TOA Audio Supplier : +8801601230350
Technical Technology: +8801601230340 (Uttara, Dhaka)
| Specification | Details |
|---|---|
| Model | TU-632 (Driver Unit Only) |
| Type | Compression Driver |
| Rated Input | 30 W |
| Impedance | 16 Ω |
| Output SPL (with horn) | 110 dB (1W, 1m) |
| Frequency Response (with horn) | 150 Hz – 6,000 Hz |
| Horn Coupling | 1-3/8″ 18 Thread |
| Compatible Horn | TH-652 (and other JIS C 5504 standard horns) |
| Protection Rating (assembled) | IP65 |
| Construction | Aluminum Cover, HIPS Case, Stainless Steel Screws |
| Cable | Integrated 450mm White PVC Cable |
| Dimensions & Weight | Φ139 x 106 mm (D) / 1.5 kg |
